INSTRUMENTATION

Meet the ever-expanding application demands of earth sciences and other fields requiring high-precision isotope ratio measurements with the Thermo Scientific™ Neptune Plus™ high resolution multicollector ICP-MS system. The Neptune Plus system combines field-proven technology with the latest innovations in amplifier technology. This powerful double-focusing mass spectrometer, with high mass resolution, variable multicollectors, and multi ion counting capability, offers ground-breaking sensitivity, high dynamic ranges, unsurpassed linearity, and robust stability.

-Excerpt from ThermoFischer Scientific

Clean up your spectra. Make your analysis easy. High-Resolution ICP-MS is made for the most flexible and reliable analyses, for the best analytical results. Perform accurate and reliable quantitative multi-element analyses at trace level, with the highest sensitivity and without complicated sample preparation. The Thermo Scientific™ Element™ 2 and Element XR™ High Resolution ICP-MS systems cover the mg/L to sub pg/L concentration range—making them especially suitable for semiconductor, geological and material science laboratories.

-Excerpt from ThermoFisher Scientific

The ESL213 is an affordable yet zero-compromise instrument suitable for a wide range of applications. A perfect complement to any ICP, ICPMS, noble gas or stable isotope mass spectrometer.

• 213 nm Nd:YAG laser, designed and built by ESL specifically for laser ablation
• Homogenized and attenuated at 1064nm for a flat top beam with fine fluence control
• Huge spot size range with 1 μm steps
• Driven via ActiveView 2 – the world’s most powerful LA software

-Excerpt from Elemental Scientific

The CETAC Aridus3​ Desolvating Nebulizer System is a specialized liquid sample introductio​n accessory for inductively coupled plasma mass spectrometry (ICP‑MS). The Aridus3 can enhance analyte sensitivity up to 10 times or more ​​​and can greatly reduce solvent-based interferences such as oxides and hydrides. The Aridus3 couples a low-flow (50, 100, or 200 µL/min) PFA nebulizer and a heated PFA spray chamber with an inert fluoropolymer membrane. This combination provides enhanced analyte sensitivity while reducing solvent based interferences such as oxides and hydrides. The Aridus3 is particularly advantageous for small volume and highly corrosive samples such as those generated in the earth sciences and the semiconductor industry.

-Excerpt from Teledyne LABS

The CETAC Aridus II™ Desolvating Nebulizer System is a specialized accessory for all types of ICP-MS instruments. Particular benefits and features of the Aridus II™ include:

• Sensitivity enhanced up to 10x or greater for ICP-MS
• Patented PTFE membrane desolvator for extremely low oxide (CeO/Ce < 0.03%) and hydride levels
• Modular design of membrane desolvator for easy removal and cleaning
• Covered PFA spray chamber for reduction of electrostatic effects
• Improved signal stability, even for organic solvents such as methanol
• Equipped with the tunable Aspire PFA Nebulizer, with flow rates of 50, 100, and 200 µL/min

-Excerpt from EVISA database

The highly successful Apex systems maximize ICP & ICPMS sensitivity by increasing sample transport efficiency while also enhancing stability. Apex systems maximize sensitivity by up to 10x by nebulizing liquid samples first into a heated cyclonic spray chamber. Then, multi-stage Peltier-cooled condensing chambers remove much of the solvent vapor, reducing solvent load on the plasma

• O-ring free quartz flow path & N2 addition control
• Maximizes signal intensity by up to 3-10x
• Dual preset temperature settings for spray chamber (100°C or 140°C) and multi-pass condenser (2°C or -5°C) temperatures
• Additional mixing chamber that homogenizes and further stabilizes sample aerosol stream
• Recommended for isotope ratio measurements

-Excerpt from Elemental Scientific

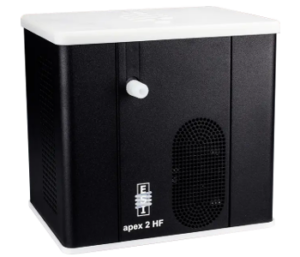

The highly successful Apex systems maximize ICP & ICPMS sensitivity by increasing sample transport efficiency while also enhancing stability. Apex systems maximize sensitivity by up to 10x by nebulizing liquid samples first into a heated cyclonic spray chamber. Then, multi-stage Peltier-cooled condensing chambers remove much of the solvent vapor, reducing solvent load on the plasma

• Classic Apex design equipped with HF-resistant PFA flow path
• Recommended for geochemistry and semiconductor applications with HF

-Excerpt from Elemental Scientific
